Q-WiFi-Fone-BW

Airello Q-WiFi-Fone-BW

Phone with VoIP and WLAN

Q-WiFi-Fone-BW provides
     an effective, reliable
          mobile telephone communication system
               for indoors and outdoors applications

Ideal for use in Corporate Offices, Restaurants,
Warehouses, Hospitals and Car Dealerships

Q-WiFi-Fone-BW wireless IP phone enhances productivity and allows greater mobility in the workplace.

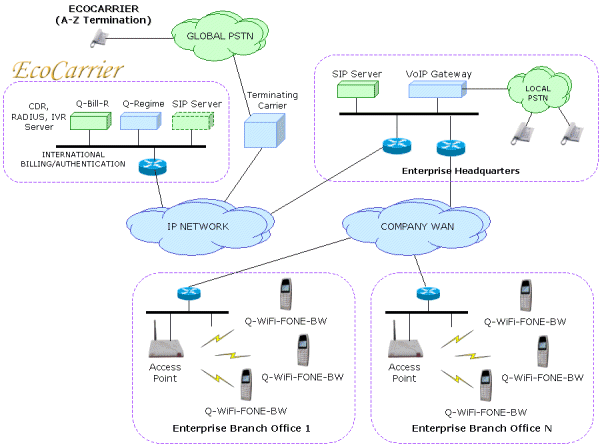

Q-WiFi-Fone-BW operates over intelligent IP network infrastructure with IEEE802.11b compliant wireless access points and allows the phone users to place calls across the existing data network with SIP protocol.

Features

Network

QoS – supports Lite DECF, RSVP
Hand Over – among APs in the same subnet
Security-SSN/WPA, 802.1x
IEEE 802.11b, Dynamic Rate Scaling at 1, 2, 5.5, 11
Up to 14 channels depends on regular domain
Frequency Range: 2.4-2.497GHz
SIP Network Protocol Support
Supports TCP, UDP, DHCP, DNS, TELNET, FTP, TFTP
Encryption 40, 128 bit WEP
G.711, G729ab, G.726, G723.1 codes with echo cancellation

Phone

100+ hours standby time and 4 hours talk time
Hands-free by earphone or speakerphone
50 phonebook records
10 received, dialed, and missed calls
Volume control for speakerphone and ringer
Multi-languages support
Time/date display
Keypad lock
RF and Battery indication
Phone Authentication
High Frequency response ringer/vibration/display alert
RF output power management

Call

Call Waiting
Call Transfer
Call Mute
Call Hold/Resume
Caller ID and name tag
Redial through last dialed numbers
Call Pick-up / Group pick up
Call from phonebook and call history
Call Timer

Specifications

General

Media Access Control:
- CSMA/ CA
Compatibility:
- WECA (Wi-Fi ) Compliant
- IEEE802.11b Compliant
Regulations:
- FCC Part 15/UL, ETSI 300/328/CE, TELEC/MITI
Power Supply:
- Rechargeable Li-Ion 3.7V Battery
Data Rate:
- 11, 5.5, 2, 1 Mbps, auto-fallback
Converage Range (Open Environment):
- 11 Mbps: 300m/450m (20 dBm output power)
- 5.5 Mbps: 400m/600m (20 dBm output power)
- 2 Mbps: 500m/750m (20 dBm output power)
- 1 Mbps: 800m/1200m (20 dBm output power)

Radio, Frequency and Output Power

Frequency Band:
- 2.4GHz ~ 2.497GHz
Modulation Techniques:
- DSSS (CCK, DBPSK, DQPSK)
Channels:
- U.S: 11 (1 ~ 11)
- Europe: 13 (1 ~ 13)
- Japan: 14 ( 1 ~ 14)
- France: 4 (10 ~ 13)
Output Power:
- Transmit Power Control (20mW~100mW)
- 20dBm (100mW) - FCC
- 20dBm (100mW) - CE
Sensitivity:
- 11 Mbps <-83dBm
- 5.5 Mbps <-86dBm
- 2 Mbps <-88dBm
- 1 Mbps <-90dBm
Wireless LAN Function:
- SSID
- Channel
- Tx Rate
- Wireless Mode (Ad_hoc / Infrastructure)
- Site Survey
- Roaming Setup
- Encryption
Network Functions:
- IP Address (DHCP Client/Static IP/PPPoE(option))
- SNTP Client (with 3 servers)
- FTP Client
- DNS
- NetBIOS

Management

Serial Console with shell
Telnet:
- Login and timeout control
- Phone setting
- SIP setting
- Network setting
- WLAN setting
- System information
HTTP Server:
- Login and timeout control
- Phone setting
- SIP setting
- Network setting
- WLAN setting
- System information
Security:
- WEP key (64/128 bits)
- 802.1x: MDF/TLS
- WPA
- Phone Lock
Roaming:
- IEEE802.11f(IAPP) for layer 2 handover
- Proprietary layer 3 handover
Quality of Service:
- Proprietary EDCF
- IEEE802.11e (option)

Call Control Protocols

SIP:
- RFC 3261 (and 2543) conformant UA
- SIP Username- Registrar Username
- Registrar Password
- Registrar Realname
- Registrar IP Address
- Registration Status
- SIP Proxy: Proxy IP address/Proxy Status
Media Protocols:
- RTP
Audio:
- G.711 A-ulaw / Appendix I-II
- G.729 AB
- G.726
- G.723
- SPEEX
- Echo Canceller
- Jitter Buffer
VAD (Voice Activity Detection):
- CNG (Comfort Noise Generation)
LCD:
- 64x128 Graphical LCD
Battery:
- Li-Ion 1040mAh

Environmental and Physical

Temperature Range:
- 0°C to 45°C (32°F to 131°F) - operating
- -20°C to 70°C (-4°F to 140°F) - storage
Humidity (non-condensing):
- 5% - 95% typical
Dimensions:
- (H*W*L) 20 mm x 44 mm x 125 mm
Weight:
- 83 g
